Frame without foot,.end shield with flange(B14)
For more information, please send an email or call our hotline

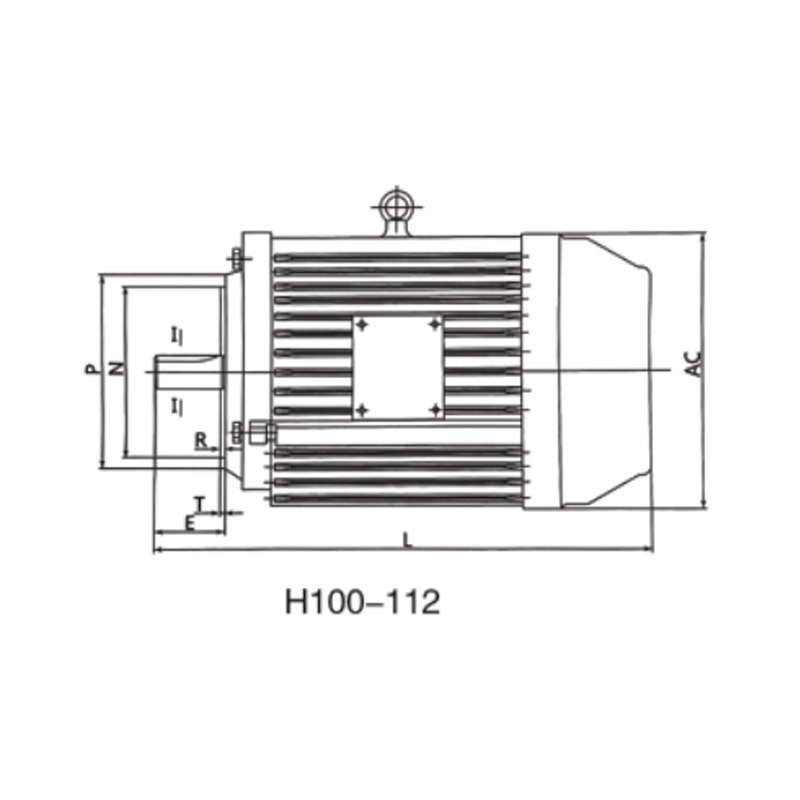

| Frame | Ploes | Mounting dimension(mm) | Overall dimensions(mm) | |||||||||||||
| D | E | F | G | M | N | P | R | S | T | Holes | AC | AD | HD | L | ||
| 80M | 2.4.6 | 19 | 40 | 6 | 15.5 | 100 | 80 | 120 | 0 | M6 | 3 | 4 | 175 | 145 | — | 305 |
| 90S | 2.4.6 | 24 | 50 | 8 | 20 | 115 | 95 | 140 | M8 | 3 | 205 | 170 | — | 360 | ||
| 90L | 2.4.6 | 24 | 50 | 8 | 20 | 115 | 95 | 140 | M8 | 3 | 205 | 170 | — | 390 | ||
| 100L | 2.4.6.8 | 28 | 60 | 8 | 24 | 130 | 110 | 160 | M8 | 3.5 | 215 | 180 | 245 | 435 | ||
| 112M | 2.4.6.8 | 28 | 60 | 8 | 24 | 130 | 110 | 160 | M8 | 3.5 | 255 | 200 | 275 | 440 | ||
